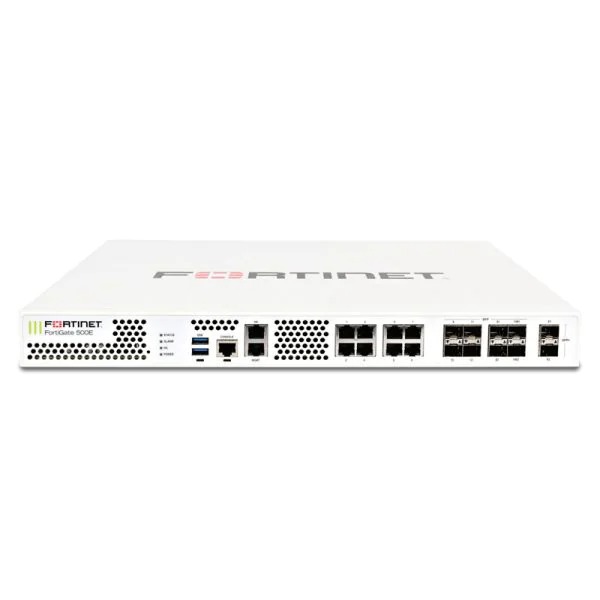

فایروال FG-501E, Fortinet FG-501E Firewall, 2x10GE SFP+, 10xGE RJ45, 8xGE SFP

Type

FORTIGATE 501E

Interfaces and Modules

10 GE SFP+ Slots

2

GE SFP Slots

8

GE RJ45 Interfaces

8

GE RJ45 Management Ports

2

USB Ports

2

RJ45 Console Port

1

Local Storage

2x 240 GB SSD

Included Transceivers

2x SFP (SX 1 GE)

System Performance and Capacity

IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)

36 / 36 / 22 Gbps

IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)

36 / 36 / 22 Gbps

Firewall Latency (64 byte, UDP)

2 μs

Firewall Throughput (Packet per Second)

33 Mpps

Concurrent Sessions (TCP)

8 Million

New Sessions/Second (TCP)

300,000

Firewall Policies

10,000

IPsec VPN Throughput (512 byte)

5 Gbps

Client-to-Gateway IPsec VPN Tunnels

50,000

SSL-VPN Throughput

5 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

10,000

SSL Inspection Throughput (IPS, avg. HTTPS)

5.7 Gbps

SSL Inspection CPS (IPS, avg. HTTPS)

3,500

Application Control Throughput (HTTP 64K)

14 Gbps

CAPWAP Throughput (1444 byte, UDP)

18 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

48

Maximum Number of FortiAPs (Total / Tunnel)

512 / 256

Maximum Number of FortiTokens

5,000

Maximum Number of Registered FortiClients

2,000

High Availability Configurations

Active-Active, Active-Passive, Clustering

System Performance — Enterprise Traffic Mix

IPS Throughput

5.2 Gbps

NGFW Throughput

5 Gbps

Threat Protection Throughput

4.7 Gbps

Dimensions and Power

Height x Width x Length

1.75 x 17.0 x 15.0 inches

44.45 x 432 x 380 mm

Form Factor

1 RU

AC Power Supply

100–240V AC, 60–50 Hz

Power Consumption (Average / Maximum)

105 W / 200 W

Current (Maximum)

6A

Heat Dissipation

613 BTU/h

Redundant Power Supplies

optional

Operating Environment and Certifications

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

10–90% non-condensing

Noise Level

43 dBA

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
