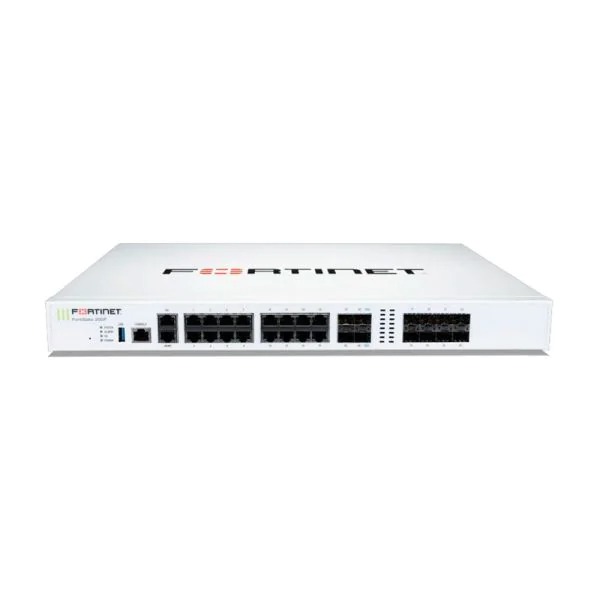

فایروال FG-200F, Fortinet FortiGate Firewall, 20 Gbps throughput/480 VPN tunnels/Appliance Only

Interfaces and Modules

GE RJ45 Ports

16

GE RJ45 Management / HA

1 / 1

GE SFP Slots

8

10 GE SFP+ FortiLink Slots (default)

2

10 GE SFP+ Slots

2

USB Port

1

Console Port

1

Onboard Storage

0

Included Transceivers

0

System Performance — Enterprise Traffic Mix

IPS Throughput ²

5 Gbps

NGFW Throughput ^{2, 4}

3.5 Gbps

Threat Protection Throughput ^{2, 5}

3 Gbps

System Performance and Capacity

IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)

27 / 27 / 11 Gbps

Firewall Latency (64 byte, UDP)

4.78 μs

Firewall Throughput (Packet per Second)

16.5 Mpps

Concurrent Sessions (TCP)

3 Million

New Sessions/Second (TCP)

280,000

Firewall Policies

10,000

IPsec VPN Throughput (512 byte) ¹

13 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

2,500

Client-to-Gateway IPsec VPN Tunnels

16,000

SSL-VPN Throughput

2 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

500

SSL Inspection Throughput (IPS, avg. HTTPS) ³

4 Gbps

SSL Inspection CPS (IPS, avg. HTTPS) ³

3,500

SSL Inspection Concurrent Session (IPS, avg. HTTPS) ³

300,000

Application Control Throughput (HTTP 64K) ²

13 Gbps

CAPWAP Throughput (HTTP 64K)

20 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

64

Maximum Number of FortiAPs (Total / Tunnel)

256 / 128

Maximum Number of FortiTokens

5,000

High Availability Configurations

Active, Active-Active, Passive, Clustering

Dimensions and Power

Height x Width x Length (inches)

1.73 x 17.01 x 13.47

Height x Width x Length (mm)

44 x 432 x 342

Weight

9.92 lbs (4.5 kg)

Form Factor

Ear Mount, 1 RU

AC Power Supply

100–240V AC, 50/60 Hz

Power Consumption (Average / Maximum)

101.92 W / 118.90 W

Current (Maximum)

100V / 2A, 240V / 1.2A

Heat Dissipation

405.70 BTU/h

Redundant Power Supplies

Yes

Operating Environment and Certifications

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

20–90% non-condensing

Noise Level

49.9 dBA

Forced Airflow

Side to Back

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, IPv6
